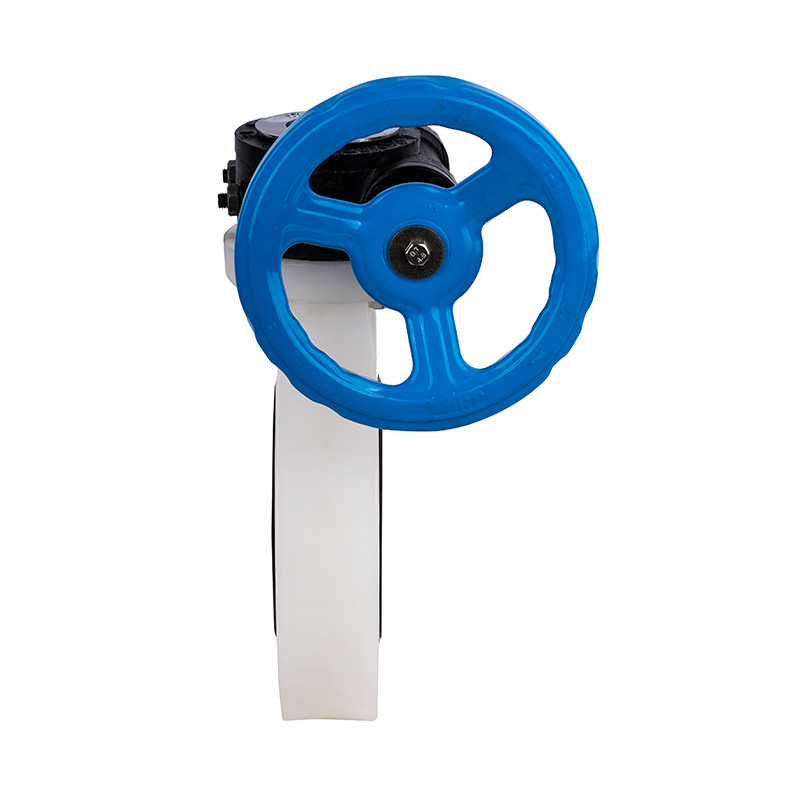

PVDF D371X-10F Worm-Gear Butterfly Valve DN40-1000 1-1/2"-30" ANSI Standard

PVDF Worm Gear Butterfly Valve Manual Center Sealed Soft Seal DN40–1000 Industrial and Residential Plastic Lever Handle Valve ANSI Standard
Operation Mode: Manual
Connection Type: Wafer
Structure: Center Sealed
Sealing Type: Resilient Sealed
Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -40~150°C
Sealing Surface Material: Soft Seal
Application: Industrial Use, Water Treatment Use
Stem Material: Steel, Stainless Steel
Brand: KXPV
Specification: DN40–1000
Origin: Zhejiang, Ningbo

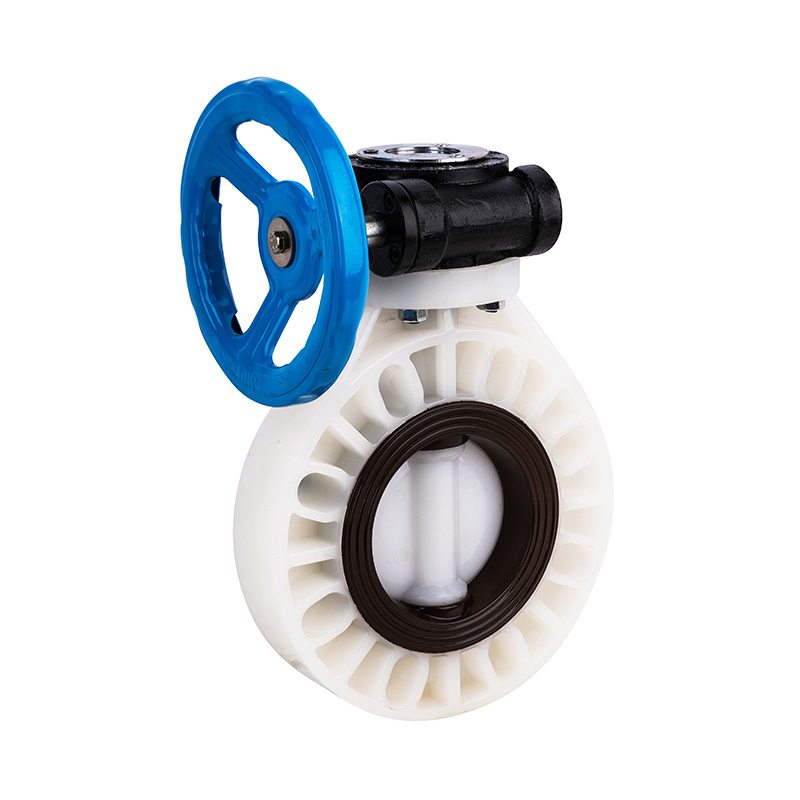

Product Structural Features
1.The valve is compact and lightweight, easy to disassemble and maintain, and can be installed in any position.
2.Simple and compact structure with low operating torque, allowing rapid 90° rotation for quick opening.
3.Linear flow characteristics with excellent regulating performance



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Wheel Alloy material 1
2 Worm gear Alloy material 1
3 Pin Steel 1
4 Nut Cup FRPP PPH FRPP 4
5 Body PVC-C PVC-U PVDF PPH FRPP 1
6 Disc PVC-C PVC-U PVDF PPH FRPP 1
7 Sealing rubber FPM EPDM FPM EPDM 1
8 Stem Steel 1

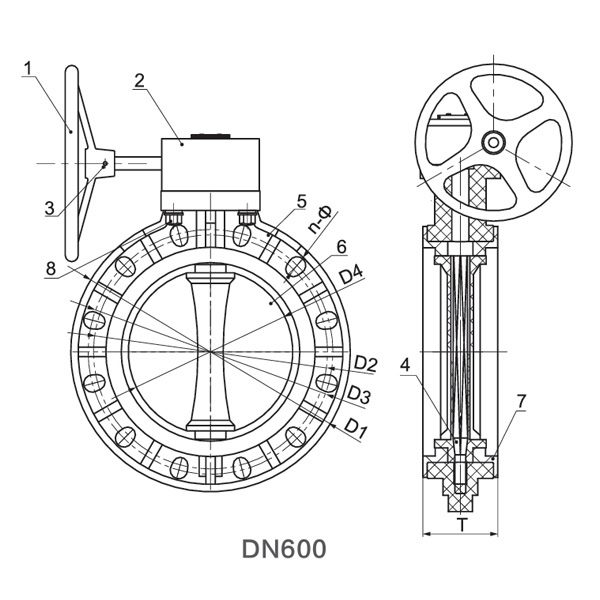

No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Wheel cast iron/Alloy material 1
2 Worm gear cast iron/Alloy material 1
3 Pin Steel 1
4 Stem Steel 1
5 Body PVC-C PVC-U PVDF PPH FRPP 1
6 Disc PVC-C PVC-U PVDF PPH FRPP 1
7 Sealing rubber FPM EPDM FPM EPDM 1
8 Nut Cup FRPP PVDF PPH FRPP 4

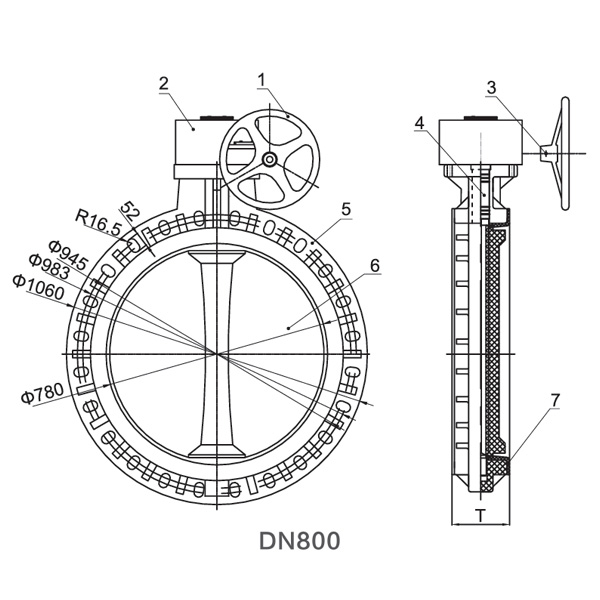

No. Name Material Qty.
1 Wheel cast iron 1
2 Worm gear cast iron 1
3 Pin Steel 1
4 Stem Steel 1
5 Body FRPP 1
6 Disc FRPP 1
7 Sealing rubber EPDM 1

Dimension List

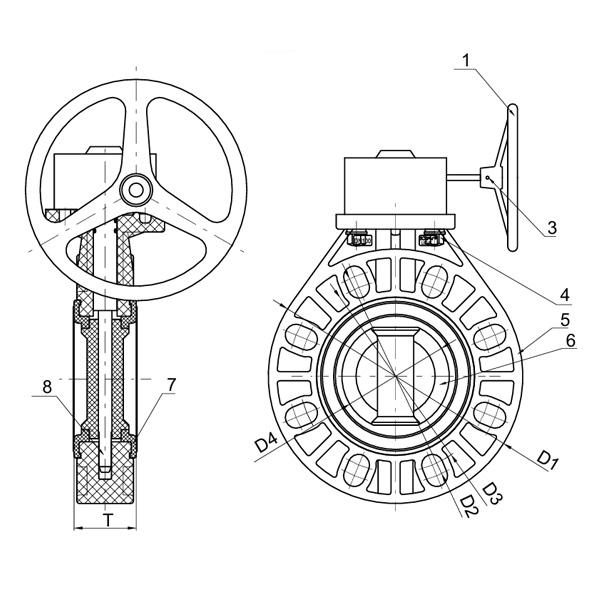

Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
1½"(40) 148 96 110 41.5 39 4-Φ19*25
2"(50) 162 108 125 48.5 43 4-Φ19*26
2½"(65) 180 128 145 63 45 4-Φ19*26
3"(80) 196 148 160 75.5 45 8-Φ19*24
4"(100) 225 168 191 95 56.5 8-Φ19*29
5"(125) 255 200 216 120 65 8-Φ23*31
6"(150) 285 225 241 143.5 75 8-Φ23*31
8"(200) 340 280 299 195 85 8-Φ23*32
JIS:12-Φ23*27

Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
10"(250) 423 350 366 245.5 110 12-Φ23*32
12"(300) 495 400 436 291.5 115 12-Φ23*32
14"(350) 555 460 470 340 127 16-Φ22
12-Φ29
16"(400) 607 515 540 399 140 16-Φ23*45
18"(450) 645 565 583 446 150 20-Φ28.5
16-Φ34.5
20"(500) 708 615 640 494 150 20-Φ26*41
24"(600) 820 725 750 570 170 20-Φ35*47
